Compact SMD Common Mode Choke with High Current Capability and Superior EMI Suppression for Space-Efficient Power Supply Noise Filtering

5000
MOQ
Compact SMD Common Mode Choke with High Current Capability and Superior EMI Suppression for Space-Efficient Power Supply Noise Filtering
Caracteristicas Galería Descripción de producto Habla Ahora.
Caracteristicas
Especificaciones
Resaltar:

Superación de la EMI en el modo común

,

Fuente de alimentación Filtración de ruido

,

El sistema de control de velocidad de los dispositivos de control de velocidad de los dispositivos de control de velocidad de los dispositivos de control de velocidad
Información básica
Lugar de origen: Porcelana
Nombre de la marca: SHINHOM
Certificación: RoHS
Número de modelo: SQS1212A
Documento: SQS1212A Series_.pdf
Pago y Envío Términos
Tiempo de entrega: 2 ~ 8 semanas
Condiciones de pago: LC, T/T
Descripción de producto

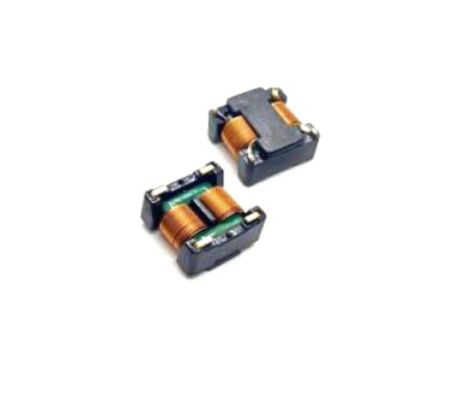

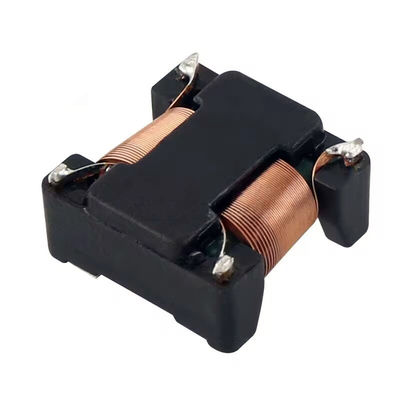

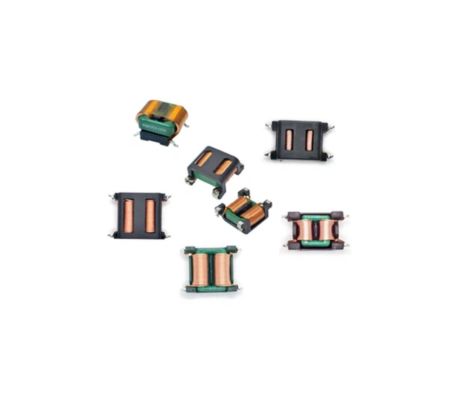

Compact SMD Common Mode Chokes for Power Supply Noise Suppression
Engineered for modern power electronics, the SQS1212A Series represents a line of high-performance SMD Inductors designed to effectively suppress electromagnetic interference (EMI). These Low DCR Chokes utilize a square core construction and high-permeability material to deliver high impedance at low frequencies with minimal DC power loss. Their compact SMD flat profile and superior attenuation characteristics make them an ideal, cost-effective solution for enhancing EMC performance in space-constrained applications.
Key Features
  • Space-Efficient & Reliable: Compact SMD footprint with a square core design minimizes board space usage and reduces magnetic leakage.
  • Superior EMI Suppression: High-permeability material combined with low stray capacitance ensures high impedance at low frequencies and provides excellent attenuation of common-mode noise.
  • High Current Capability: The Low DCR Choke design minimizes voltage drop and power loss, supporting high rated currents up to 3.0A for robust power handling.
  • Safety & Compliance: Construction features materials compliant with UL94V-0 flammability rating and offers high insulation resistance, meeting international safety standards. The series is also RoHS and REACH compliant.
  • Automated Production: Manufactured with automated processes for high consistency, reliability, and cost-effectiveness.
Technical Specifications
Parameter Details
Inductance Range 5mH to 20mH (Test Condition: 1.0kHz, 0.25V)
DCR (Max) 80mΩ to 220mΩ
Rated Current 1.0A to 3.0A
Rated Voltage 80Vac - 265Vac
Withstand Voltage 1.0KVac for 2 seconds
Operating Temperature -25°C to +125°C (including coil temperature rise)
Insulation Resistance 100 MΩ Min. @ 500Vdc
Recommended Power Range 60W - 150W
Applications
These versatile Common Mode Chokes are ideally suited for noise filtering in a wide array of power supply circuits and electronic devices, including:
  • Switching Mode Power Supplies (SMPS): High-density designs for LCD TVs, Power Adapters, and Battery Chargers.
  • Consumer Electronics: Effective EMI filtering in Home Appliances and various digital devices.
  • Industrial Electronics: Noise suppression in control boards, motor drives, and industrial power systems.
  • Automotive Electronics: DC-DC converters and onboard chargers where reliable performance is critical.
