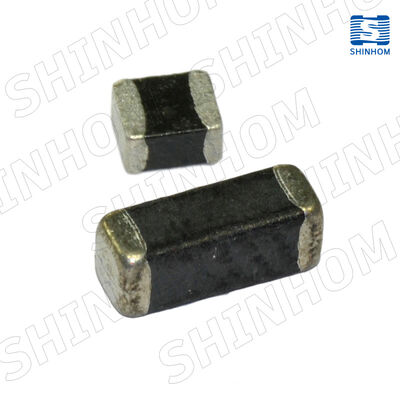

Low Profile SMD Inductor with 1 to 1,200nH Inductance and Large Current Capability for Compact PCB Layouts

5000
MOQ
Low Profile SMD Inductor with 1 to 1,200nH Inductance and Large Current Capability for Compact PCB Layouts
Caracteristicas Galería Descripción de producto Habla Ahora.
Caracteristicas
Especificaciones
Rango de inductancia: 1 a 1200 nH
capacidad actual: Grande
Diseño de perfil: De bajo perfil
Temperatura de funcionamiento: -20 a 85°C
Resistencia de aislamiento: >mΩ 100
Información básica
Lugar de origen: Porcelana
Nombre de la marca: SHINHOM
Certificación: RoHS/ISO/UL/CE/IATF16949/CNAS
Número de modelo: AIML
Pago y Envío Términos
Tiempo de entrega: 2~8 semanas
Condiciones de pago: LC, T/T
Descripción de producto
Chip Inductor with 1 to 1,200nH Inductance, Low Profile and Large Current
Product Overview

The Low-Profile Chip Inductor is a high-efficiency, magnetically shielded SMD component designed for high-current applications in compact PCB layouts. With low DCR and a shielded construction, it ensures minimal power loss, high reliability, and strong performance in space-constrained environments.

Featuring an inductance range from 1 to 1,200 nH, this SMD inductor supports a wide variety of power applications while maintaining stable operation across temperature and humidity variations.

Key Features
Inductance Range
1 to 1,200 nH, supporting versatile power designs
High Current Capability
Handles large currents in SMD power applications
Low-Profile Design
Ideal for compact and space-conscious PCB layouts
Magnetic Shielding
Reduces EMI interference and preserves signal integrity
Low Resistance
Minimizes deep power losses for efficient performance
Operating Temperature
-20 to 85°C (with heating coil)
Durability
Terminal strength verified after soldering; withstands vibration, humidity, and reflow soldering conditions
Safety
Dielectric strength tested at 100V DC; insulation resistance >100 MΩ
Applications
  • SMD power management circuits
  • Compact DC/DC converters and embedded systems
  • High-current surface-mount power designs
  • Automotive and industrial electronics requiring robust SMD inductors
