Name: High Inductance Common Mode Inductor with Low DCR and UL Insulation Standards for EMI Filtering
Brand: Shaanxi Shinhom Enterprise Co.,Ltd
SKU: LFUR17A
Availability: InStock

Caracteristicas Galería Descripción de producto Habla Ahora.

Caracteristicas

Especificaciones

Resaltar:

High Inductance Common Mode Inductor

Low DCR Differential Mode Inductor

UL Insulation Standards EMI Filter Inductor

Información básica

Lugar de origen: Porcelana

Nombre de la marca: SHINHOM

Certificación: RoHS

Número de modelo: LFUR17A

Documento: LFUR17A_.pdf

Pago y Envío Términos

Tiempo de entrega: 2 ~ 8 semanas

Condiciones de pago: LC, T/T

Galería

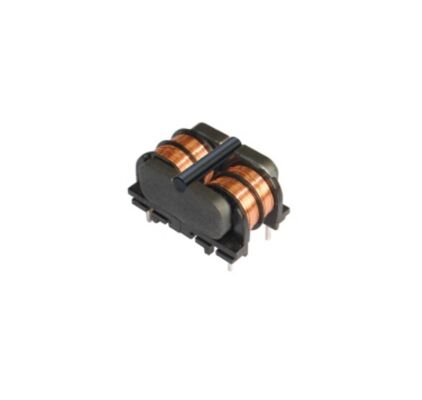

High Inductance Common Mode Inductor with Low DCR and UL Insulation Standards for EMI Filtering

Descripción de producto

High-Reliability High-Inductance Common & Differential Mode Inductors for Power Line Noise Filtering

Product Details

The LFUR17A Series is a high-performance line of Common Mode Inductors and Differential Mode Suppression Inductors, designed to deliver exceptional noise attenuation for modern power electronics. As part of advanced EMI Filters, RFI Filters, and High Inductance Power Line Noise Filters, this series provides optimized inductance, low DCR, and reliable performance in compact PCB-mount designs.

Engineered to meet UL insulation standards and US lighting safety requirements, the LFUR17A series is ideal for high-efficiency SMPS, LED drivers, CCFL backlighting, offline switching power systems, and power tools. These inductors offer excellent differential-mode inductance with low resistance, enabling stable operation under noisy environments and fluctuating ground conditions.

With inductance values ranging from 3.3 mH to 100 mH, DCR as low as 0.21 Ω, and current ratings up to 2.5 A, the LFUR17A series ensures robust EMI/RFI suppression while maintaining compact dimensions suitable for dense PCB layouts.

Key Features

Designed to Meet UL Insulation Requirements
Ensures safety and reliability for demanding lighting and power applications.
Common & Differential Mode Noise Suppression
Enhanced filtering effectiveness for high-frequency and low-frequency interference.
High Inductance with Low Resistance
Optimized for power line noise filtering with minimal power loss.
Compact PCB Footprint
Space-efficient design suitable for high-density power supplies and lighting systems.
Stable Performance Under Thermal Stress
Operating temperature from -40°C to +125°C.
High Stray Inductance (Lstray)
Supports improved differential-mode attenuation.
Wide Application Range
Ideal for both consumer and industrial power electronics.

Electrical Characteristics @ 25 °C

Part Number	Inductance (mH)	Lstray (µH) Typ	DCR (Ω) Max	IDC (A) Max
LFUR17A-332Y	3.3	90	0.21	2.50
LFUR17A-103Y	10	450	0.32	1.65
LFUR17A-153Y	15	795	0.52	1.32
LFUR17A-273Y	27	1480	0.95	0.92
LFUR17A-333Y	33	1680	1.01	0.88
LFUR17A-393Y	39	2100	1.60	0.85
LFUR17A-473Y	47	2700	1.67	0.75
LFUR17A-683Y	68	3500	2.38	0.62
LFUR17A-783Y	78	4100	2.57	0.58
LFUR17A-104Y	100	5770	3.87	0.50

Technical Information & Physical Characteristics

Dimensions: 25.0 * 18.8 * 16.5 mm (max)
Pin Layout: 4-pin through-hole
Pad Layout: Optimized for stable PCB soldering
Inductance Test: 10 kHz, 0.05 V (HP4284A)
Electrical Test Conditions: 25°C, 33% RH (unless stated otherwise)
Temperature Rise Limit: 55°C max
Operating Temperature: -40°C to +125°C
Ambient Temperature: -40°C to +85°C
Hi-Pot:
- 1500 VAC / 50 Hz / 1 mA / 2 s (winding to core)
- 2500 VAC / 50 Hz / 3 mA / 2 s (winding to winding)
Custom Designs Available

Applications

Power Tools & Industrial Equipment
Enhances EMC stability in noisy switching environments.
LED & CCFL Lighting Systems
Reliable noise suppression for high-frequency lighting circuits.
Electronic Ballasts
Ensures stable, flicker-free lighting performance.
Offline Switching Power Supplies
Ideal for adapters, chargers, SMPS, and compact power modules.
Devices with Unstable Grounding
Filters both common-mode and differential-mode noise effectively.
Power Line Input & Output Filtering
Reduces emissions and improves compliance with EMC standards.
