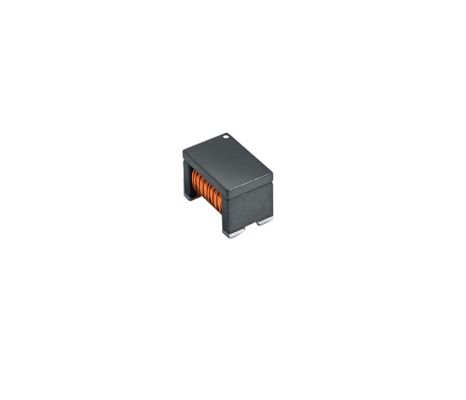

AEC-Q200 Grade LLC Half-Bridge Transformer with 4000VDC Isolation and Low Interwinding Capacitance for EV Power Systems

5000
MOQ
AEC-Q200 Grade LLC Half-Bridge Transformer with 4000VDC Isolation and Low Interwinding Capacitance for EV Power Systems
Caracteristicas Galería Descripción de producto Habla Ahora.
Caracteristicas
Especificaciones
Resaltar:

AEC-Q200 Grade LLC Half-Bridge Transformer

,

4000VDC Isolation High Frequency Transformer

,

Low Interwinding Capacitance Automotive Transformer
Información básica
Lugar de origen: Porcelana
Nombre de la marca: SHINHOM
Certificación: RoHS
Número de modelo: gtx7045
Documento: GTX7045_.pdf
Pago y Envío Términos
Tiempo de entrega: 2 ~ 8 semanas
Condiciones de pago: LC, T/T
Descripción de producto
High-Performance LLC Half-Bridge Transformers for EV Power Systems
Elevate your electric and hybrid vehicle (EV/HEV) power designs with the GTX7045 Series of LLC Half-Bridge Transformers. Engineered for superior performance in demanding automotive environments, these transformers feature exceptionally low interwinding capacitance to minimize EMI and achieve high Common Mode Transient Immunity. As a robust Automotive Transformer solution, it meets AEC-Q200 grade standards and offers 4000VDC isolation, ensuring unmatched reliability and safety for onboard chargers (OBC) and traction inverters. Manufactured with highly automated processes, the GTX7045 Series delivers cost-effective, high-quality power conversion for the next generation of electric mobility.
Key Features
  • Optimized for Automotive Excellence: Ideally suited for EV/HEV applications, including OBC and traction inverters, complying with AEC-Q200 operational standards (-40°C to +125°C).
  • Enhanced Signal Integrity: Low interwinding capacitance minimizes EMI emissions and provides high Common Mode Transient Immunity for cleaner, more stable operation.
  • Robust Isolation & Safety: Certified with 4000VDC isolation (2800 Vrms) between primary and secondary windings, ensuring system safety and reliability.
  • High Reliability & Quality: Manufactured using highly automated processes with ferrite core material, guaranteeing consistent performance and RoHS compliance.
  • Flexible Design Options: The series offers multiple turns ratio and inductance values (e.g., GTX7045-121DRC with 1.5:1 ratio) to fit various Half-Bridge Transformer topologies.
Specifications (GTX7045 Series Examples)
Part Number Turns Ratio (Pri:Sec) Pri Inductance (uH) ±30% Leakage Inductance (uH) ±20% DCR Max (Ω) Irms (mA)
GTX7045-750ARC 1:1 75 8.5 0.35 730
GTX7045-101ARC 1:1 100 9.5 0.40 680
GTX7045-121DRC 1.5:1 120 12.5 0.42 (Pri) 660
GTX7045-131BRC 2.5:1 130 15 0.44 (Pri) 660
GTX7045-141CRC 2.0:1 140 15 0.45 (Pri) 640
Inductance & Leakage Inductance: Measured at 100 kHz, 0.1 Vrms.
Isolation: 4000 VDC / 2800 Vrms for 1 minute.
Operating Temperature: -40°C to +125°C.
Applications
  • EV/HEV Power Conversion: Primary use in On-Board Chargers (OBC) and traction inverters.
  • Industrial Power Supplies: High-efficiency, isolated DC-DC converters in demanding environments.
  • Telecom & Server PSU: Providing stable and reliable power transformation in network infrastructure.
  • Renewable Energy Systems: Used in inverter stages for solar and wind power conversion.
