Name: High-Current Low DCR SMD Choke with Superior Noise Suppression for Power Supply Filtering
Brand: Shaanxi Shinhom Enterprise Co.,Ltd
SKU: SQS1918A
Availability: InStock

Caracteristicas Galería Descripción de producto Habla Ahora.

Caracteristicas

Especificaciones

Resaltar:

High-Current SMD Choke

Low DCR Power Inductor

Superior Noise Suppression Common Mode Choke

Información básica

Lugar de origen: Porcelana

Nombre de la marca: SHINHOM

Certificación: RoHS

Número de modelo: SQS1918A

Documento: SQS1918A Series_.pdf

Pago y Envío Términos

Tiempo de entrega: 2 ~ 8 semanas

Condiciones de pago: LC, T/T

Galería

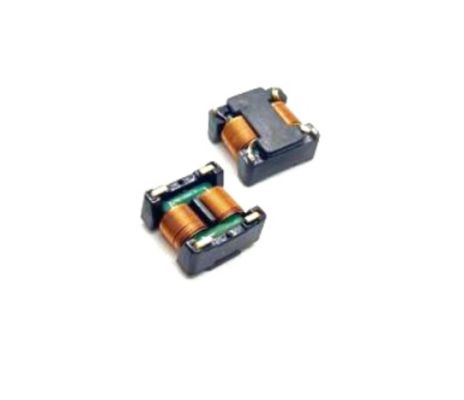

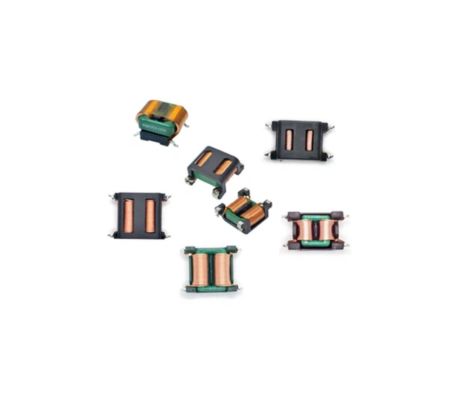

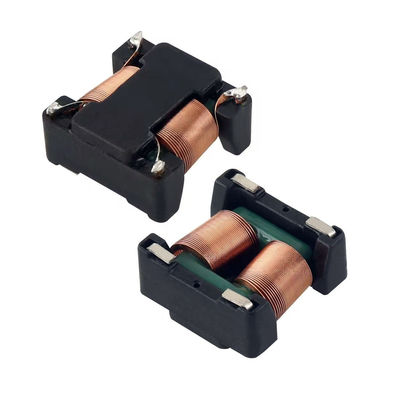

High-Current Low DCR SMD Choke with Superior Noise Suppression for Power Supply Filtering

Descripción de producto

High-Current SMD Common Mode Chokes for Power Supply Noise Filtering

Engineered for demanding power applications, the SQS1918A Series is a comprehensive lineup of high-performance Common Mode Chokes that deliver superior common-mode noise suppression. These robust Power Inductors are designed to handle high currents up to 10A while maintaining exceptionally Low DCR SMD Choke characteristics, ensuring minimal power loss and maximum efficiency in compact designs. Ideal for high-density power supplies, they offer a wide selection of inductance values to meet precise filtering requirements across a broad power spectrum.

Key Features

High-Current Performance: Uniquely designed to support very high rated currents, from standard 1.0A up to 10.0A, catering to robust power applications.
Optimized for Efficiency: The Low DCR SMD Choke design, with resistance as low as 20mΩ, significantly reduces copper losses and improves overall system efficiency.
Superior Noise Suppression: High-permeability material and low stray capacitance provide high impedance and excellent attenuation of electromagnetic interference (EMI).
Wide Inductance Range: A broad selection of 17 models with nominal inductance from 0.5mH to 30mH allows for precise circuit tuning.
Robust & Reliable: Constructed with UL94V-0 compliant materials and offering high insulation resistance, ensuring safety and durability in various environments. RoHS and REACH compliant.

Technical Specifications

Parameter	Details
Inductance Range	0.5mH to 30mH (Test Condition: 1.0kHz, 0.25V)
DCR (Max)	20mΩ to 280mΩ
Rated Current	1.0A to 10.0A
Rated Voltage	80Vac - 265Vac
Withstand Voltage	1.0KVac for 25 seconds
Operating Temperature	-25°C to +125°C (including coil temperature rise)
Insulation Resistance	100 MΩ Min. @ 500Vdc
Recommended Power Range	100W - 500W

Applications

These high-performance Common Mode Chokes and Power Inductors are essential for EMI filtering in medium to high-power applications, including:

High-Power SMPS: Noise suppression in switching power supplies for industrial equipment, servers, and telecom infrastructure.
Power Adapters & Chargers: Efficient filtering in high-wattage laptop chargers, LCD TV power boards, and fast battery charging systems.
Industrial Automation: Motor drives, control systems, and robotics requiring stable operation in noisy environments.
Home Appliances: Washing machines, air conditioners, and other high-power household electronics for improved EMC compliance.
Automotive Systems: On-board chargers (OBC) and DC-DC converters in electric and hybrid vehicles.
