Name: High-Precision Brushless Drone Motor with N52H Neodymium Magnet and Dual Ball Bearings for Stable UAV Flight
Brand: Shaanxi Shinhom Enterprise Co.,Ltd
SKU: Motor de drones
Availability: InStock

Caracteristicas Galería Descripción de producto Habla Ahora.

Caracteristicas

Especificaciones

Tipo de imán: Neodimio N52H de alta temperatura

Aspectos: Rodamientos de bolas dobles de alta precisión

Clasificación impermeable: IPX4 (resistente a salpicaduras)

Temperatura de funcionamiento: -40°C a +85°C

Temperatura de almacenamiento: -45 °C a +90 °C

Material: Carcasa de aleación de aluminio de alta resistencia, estator de acero al silicio

Destacar: Rotor equilibrado con precisión para una vibración mínima y una respuesta suave del acelerador

Resaltar:

N52H Brushless Drone Motor

High Precision Brushless Motor Drone

Información básica

Lugar de origen: Porcelana

Nombre de la marca: SHINHOM

Certificación: RoHS/ISO/UL/CE/IATF16949/CNAS

Número de modelo: Motor de drones

Pago y Envío Términos

Tiempo de entrega: 2~8 semanas

Condiciones de pago: LC, T/T

Galería

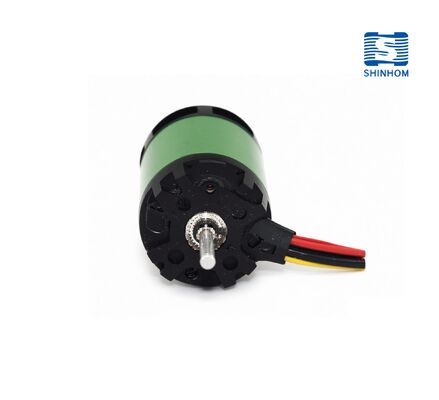

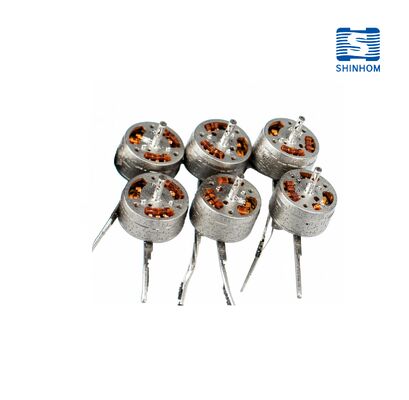

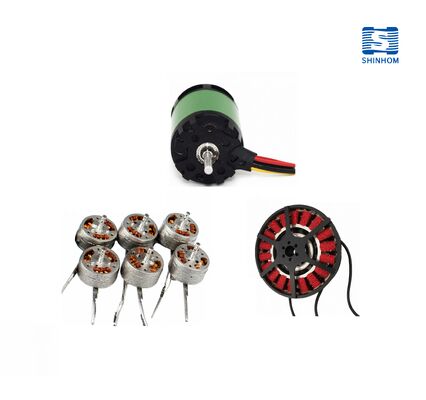

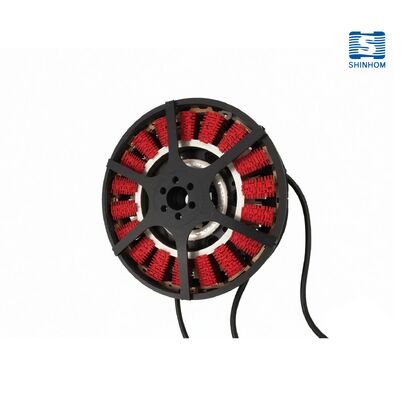

High-Precision Brushless Drone Motor with N52H Neodymium Magnet and Dual Ball Bearings for Stable UAV Flight

Descripción de producto

High-Precision Brushless Drone Motor for Enhanced Flight Performance

Key Features

This high-performance Drone Motor is engineered for superior flight control across various applications. The Brushless Drone Motor delivers enhanced power output while optimizing energy consumption, enabling extended flight durations and improved overall drone performance even in demanding conditions.

Featuring a precision rotor and premium materials, the motor ensures smooth rotation with minimal vibration for exceptional flight stability. Its lightweight construction and low power consumption make it ideal for diverse UAV applications, from professional aerial photography to industrial inspection and surveillance operations.

Technical Data

Motor Model	KV Value	Slot and Pole Count	Resistance (mΩ)	Motor Dimensions (mm)	Shaft Diameter (mm)	Weight (g)	Rated Voltage (Lipo)	Maximum Continuous Power (W)	Maximum Continuous Current (A/s)
3515	400	12N14P	115	φ41.9*40.5	4	170	6S	875	35/30
4110	340	12N14P	150	φ47.5*37.5	4	165	6S	800	32/30
4110	400	12N14P	107	φ47.5*37.5	4	165	6S	1125	45/30
5212	280	24N28P	74	φ59.0*37.5	4	260	6S	800	36/30
5212	340	24N28P	67	φ59.0*37.5	4	260	6S	1032	46.5/30
6212	180	24N28P	102	φ69.3*40.0	4	323	12S	1680	38/30
6212	300	24N28P	49	φ69.3*40.0	4	323	6S	1100	49.5/30
6212	340	24N28P	50	φ69.3*40.0	4	323	6S	1250	56/30
6215	170	24N28P	70	φ69.3*43.0	4	375	12S	2175	43/30
6215	210	24N28P	58	φ69.3*43.0	4	364	12S	3675	73/30
6215	350	24N28P	34	φ69.3*43.0	4	363	6S	1825	73/30
8318	100	36N42P	54	φ91.6*41.0	15	635	12S	2500	50/30
8318	120	36N42P	37	φ91.6*41.0	15	635	12S	3200	64/30

Applications

Professional Aerial Photography - Provides stable flight characteristics for capturing high-quality images and videos
Industrial Inspection & Surveillance - Ideal for inspection drones in industrial environments including power lines, oil rigs, and building facades
Agriculture - Supports precision spraying, crop monitoring, and aerial mapping in agricultural drones
Search & Rescue - Delivers quick and reliable flight performance in difficult environments for mission-critical operations
Logistics & Delivery - Enables efficient goods transportation over short distances, supporting drone delivery services
